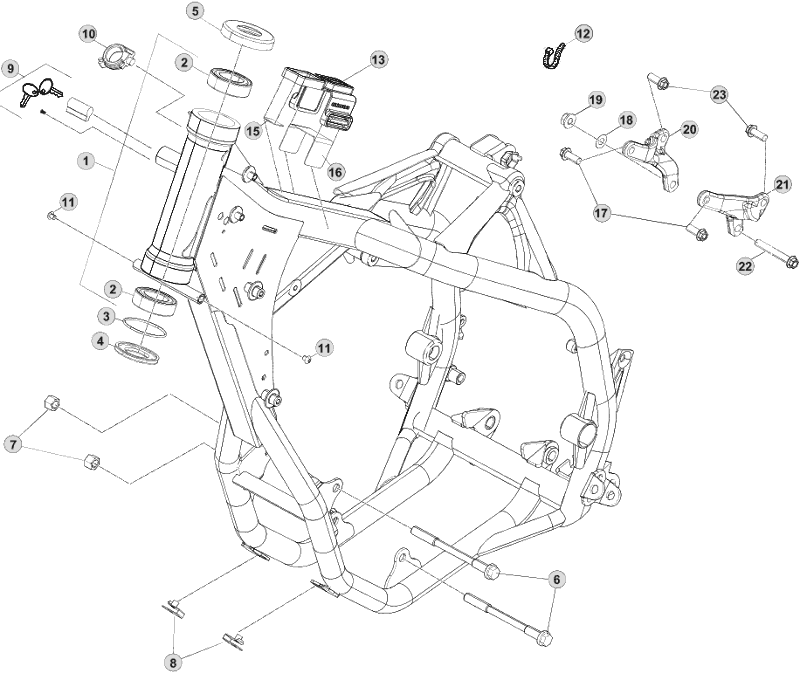

31 FRAME/SUB FRAME

COMPONENTS

0 FRAME

031.31.096.80.50
FRAME
Backorder
Qty On Image 1
RRP

$2,496.25

1 BEARING 29.50.15 (HEAD STEM)

12.99510.000
BEARING 29.50.15 (HEAD STEM)
In Stock
Qty On Image 2
RRP

$45.05

2 O RING

10.66935.000
O RING
In Stock
Qty On Image 1
RRP

$1.20

3 LOWER HEAD STEM WASHER RR/XT 2ST/4ST MY06>

020.31.039.00.00
LOWER HEAD STEM WASHER RR/XT 2ST/4ST MY06>
In Stock
Qty On Image 1
RRP

$25.70

4 PROTECTOR UPPER HEADSTEM BEARING RR/XT 2T/4T MY06&

25.98782.000
PROTECTOR UPPER HEADSTEM BEARING RR/XT 2T/4T MY06>
In Stock
Qty On Image 1
RRP

$32.65

5 ENGINE MOUNT BOLT

11.64607.000
ENGINE MOUNT BOLT
In Stock
Qty On Image 1
RRP

$28.50

6 NUT, M10X1,25 H.8.5 14MM SELF-LOCKING

13.21060.000
NUT, M10X1,25 H.8.5 14MM SELF-LOCKING
In Stock
Qty On Image 1
RRP

$7.95

7 M6 SCREW PLATE (SPEED NUT)

25.60311.000
M6 SCREW PLATE (SPEED NUT)
In Stock
Qty On Image 1
RRP

$4.35

8 KEY BARRELL LOCK AND KEY

28.85861.000
KEY BARRELL LOCK AND KEY
In Stock
Qty On Image 1
RRP

$45.30

9 FAIR LEAD D.15, RR 4T

25.24441.000
FAIR LEAD D.15, RR 4T
In Stock
Qty On Image 1
RRP

$11.06

10 SCREW 8.10 UNI7380 10.9

31.64018.000
SCREW 8.10 UNI7380 10.9
In Stock
Qty On Image 2
RRP

$2.05

11 CABLE TIE

15.14264.000
CABLE TIE
Backorder
Qty On Image 1
RRP

$2.95

12 FUEL TANK FRONT PAD RR 4T MY1

031.31.033.00.00
FUEL TANK FRONT PAD RR 4T MY1
Backorder
Qty On Image 1
RRP

$18.05

13 TANK PAD FRONT ADHESIVE

020.31.034.00.00
TANK PAD FRONT ADHESIVE
In Stock
Qty On Image 1
RRP

$1.45

14 TANK PAD REAR ADHESIVE

020.31.035.00.00
TANK PAD REAR ADHESIVE
In Stock
Qty On Image 1
RRP

$8.31

15 BOLT 8.20

11.54492.000
BOLT 8.20
In Stock
Qty On Image 1
RRP

$2.95

16 WASHER 8.16

27.49500.000
WASHER 8.16
In Stock
Qty On Image 1
RRP

$1.50

17 NUT M8

13.17120.000
NUT M8
In Stock
Qty On Image 1
RRP

$2.55

18 RH CYLINDER HEAD CONNECTION

020.31.144.00.00
RH CYLINDER HEAD CONNECTION
In Stock
Qty On Image 1
RRP

$56.60

19 LH CYLINDER HEAD CONNECTION

020.31.145.00.00
LH CYLINDER HEAD CONNECTION
In Stock
Qty On Image 1
RRP

$56.60

20 BOLT 8.65 CH13

11.55970.000
BOLT 8.65 CH13
In Stock
Qty On Image 1
RRP

$4.95

21 BOLT 8.16 CH.10

11.54521.000
BOLT 8.16 CH.10
In Stock
Qty On Image 1
RRP

$2.75
